M2M
-

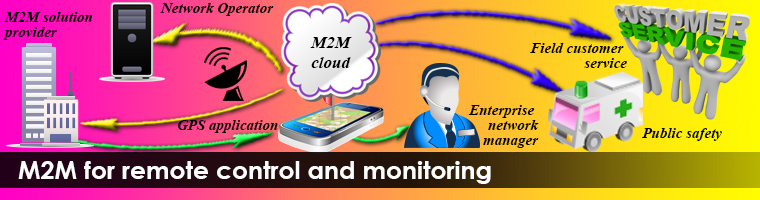

M2M-Machine to Machine Communication is the automated exchange of information betwween
technical end devices such as machines, vehicles or containers and a central control center.
- M2M application retionalize business processes by allowing machines and vendors to communicate with each
other via the mobile communication network
- M2M applications basically involve two steps
- Data Transfer (bi-directional,measuring/controlling/regulating, Monitoring)
- Data evalution and process optimization
- The core competency of M2M is data transfer using mobile communication technologies
(GSM/GPRS/RF).
- Efficency: With M2M, a single server can maintain and monitor up to 8000 simultations wireless data connecting
- Speed: A status check of tens of thousands of vending machines or printers etc. Takes only a few minutes
- Reduced data volume: Data pre-rocessing in the intelligent terminalconsiderably reduces the data payload data transfer costs reduction
- Location independent: The mobile phone data network is available practically everywhere and allows nearly any machine to be monitored. Plug&Play installation
- Return on Invest (ROI): within one business year
- Ongoing monthly revenues
- Smart Metering: Remote meter reading within the energy market
- Vending: Remote mainteance/control/telemetry of vending machines
- Track & Trace: Logistics and fleet management, traffic telemetric, container tracking
- Automation & Control: DG Monitoring,pumps,escalators,etc.
- DimensionsL- 2.20" H x 12.32 x 9.25" D, (56 H x 313 W x 235 mm D)/Optional
- Display: 16 x 2 LCD Display/20 x4 LCD Display
- Power Supply-12V DC/3A
- LED-Bi-color red and green
- Controlling outputs
- 4-Digital Outputs
- Temperature Monitoring & Alert
- Humidity Monitoring & Alert
- Dedicated Power Failure Monitoring & Alert
- Smoke/Fire Monitoring & Alert
- User Configurable (PC/SMS)
- Alert through Messages/External Hooter
- Digital Output Scheduler
- Digital Output COntrolling through SMS/Dailing
- CPU: RISC Based Micro Controller
- Memory: Non-Volatile
- Power Consumption: 9 Watts @12V DC recommended
- GSM Modem:900/1800MHz
- Temparature Sensing Range 0c to 100c
- Humidity Sensing Renge: 0 to 99 RH
- Digital Output: Potential free (DC-24V/15A, AC-250V/5A
- Digital Input: (DC-12V/3A)
- Communication Interfaces: Rs-232/485 Optional
- Cable Distance: RS232 upto 15mtr
|
|
|
|
|
|
